Development of Real-Time Mapping System

A detailed overview of a real-time mapping system built with Angular, ASP.NET Core, RabbitMQ, and SignalR, showcasing low-latency live updates of geographic points.

Development of Real-Time Mapping System Cover Image

Development of Real-Time Mapping System

In this project, I built a real-time mapping system that visualizes geographic points on a map with low latency updates. The system is designed as a modern distributed architecture with three main components:

  • PointProducer.API (Data Producer Service)
  • PointConsumer.API (Data Consumer and Publisher Service)
  • Angular/Esri Frontend Client

The main goal is to continuously update point coordinates and display them on a map without refreshing the view.

Architecture Overview

The system is composed of the following layers:

1. PointProducer.API

  • Stores 100 points in memory in GeoJSON format.
  • A Hosted Service updates random point coordinates every 5 seconds.
  • Updates are published to RabbitMQ using a fanout exchange (point_changes).
  • Configuration (RabbitMQ URI, timing, etc.) is managed via appsettings.json and the IOptions pattern.

2. PointConsumer.API

  • Subscribes to RabbitMQ updates from the producer.
  • Pushes updates to connected Angular clients using SignalR.
  • Implements resilience with Polly to automatically retry on temporary failures.
  • Provides HTTP GET endpoints for initial data loading.

3. Angular Client

  • Fetches the initial 100 points via HTTP GET from the consumer API.
  • Connects to SignalR for real-time updates.
  • Updates point coordinates dynamically on the Esri MapView, without re-rendering the entire map.

Package Diagram

Package Diagram

Live Update Flow

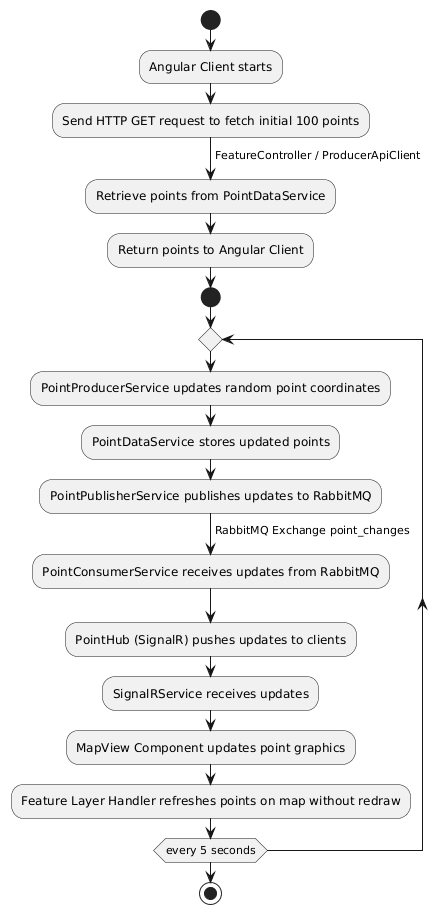

Here is a simplified activity flow for live updates:

Activity Diagram

GIF Demonstration

The GIF below demonstrates the real-time updating of geographic points on the map, showing how our system continuously reflects changes without refreshing the view.

Short overview

Key Technologies

  • Backend: ASP.NET Core Web API, Hosted Service, RabbitMQ, SignalR, Polly, Serilog, JWT
  • Frontend: Angular, Esri MapView, SignalR Client
  • Data Format: GeoJSON

Challenges & Solutions

  • Real-time updates: Achieved with SignalR and in-memory data storage.
  • Scalability: RabbitMQ fanout exchange ensures updates reach all connected clients.
  • Error handling: Polly provides automatic retry mechanisms for temporary network failures.
  • Frontend performance: Only updated points are refreshed on the map, avoiding full redraws.

Conclusion

This project allowed me to explore distributed systems, real-time messaging, and dynamic frontend updates. It demonstrates how modern web technologies can be combined to create low-latency, interactive mapping applications.

GitHub Project: PubSub-Location-Tracker 👈

Prepared by Burhan Sözer
Software Engineering & GIS Solutions
